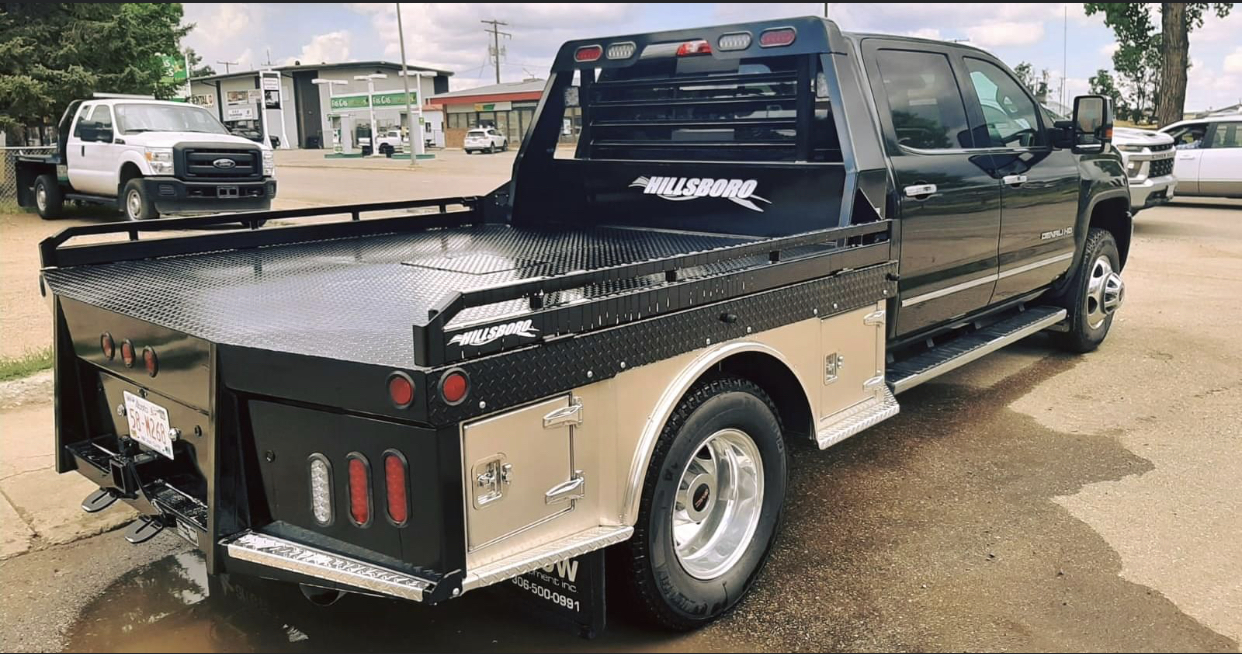

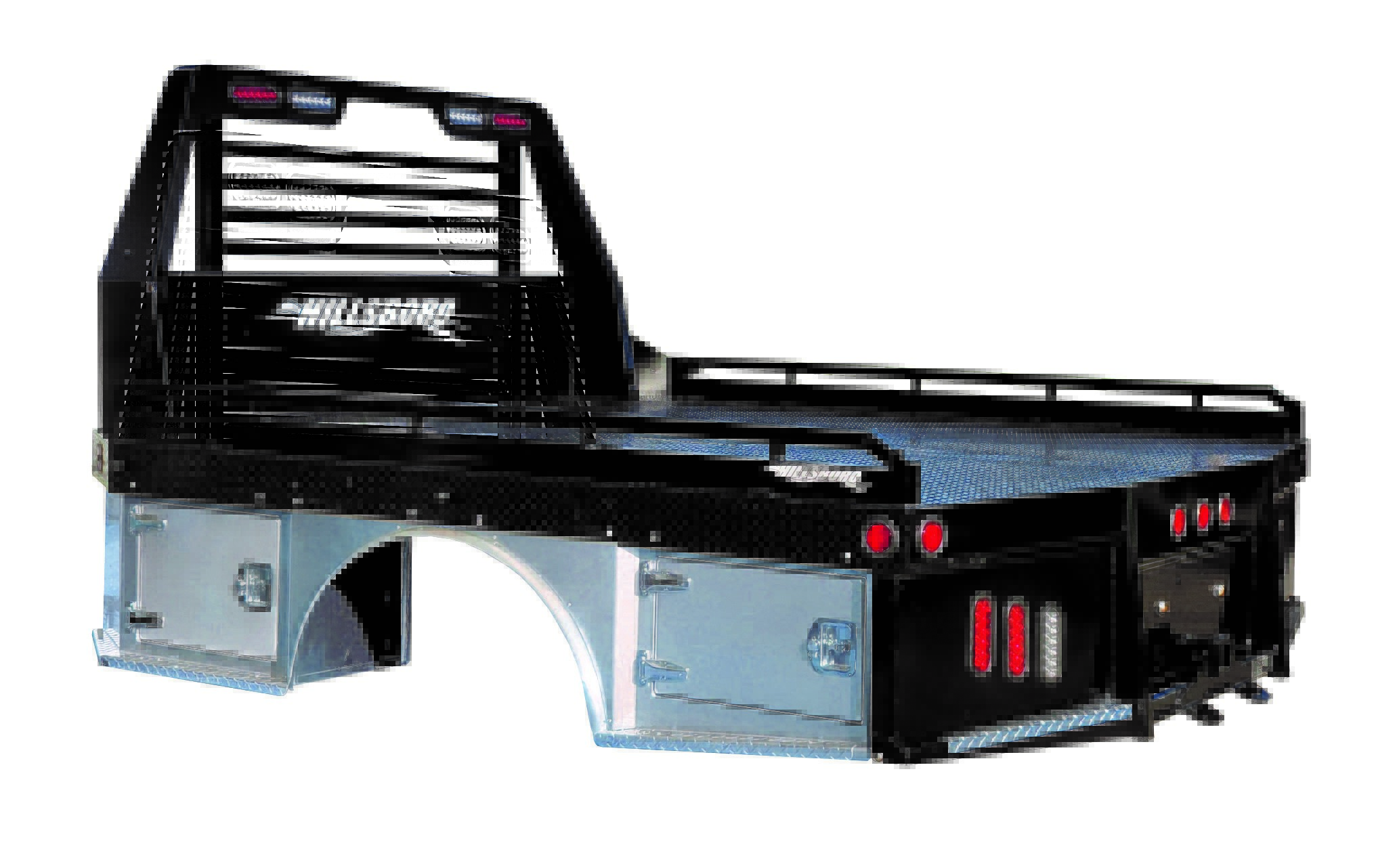

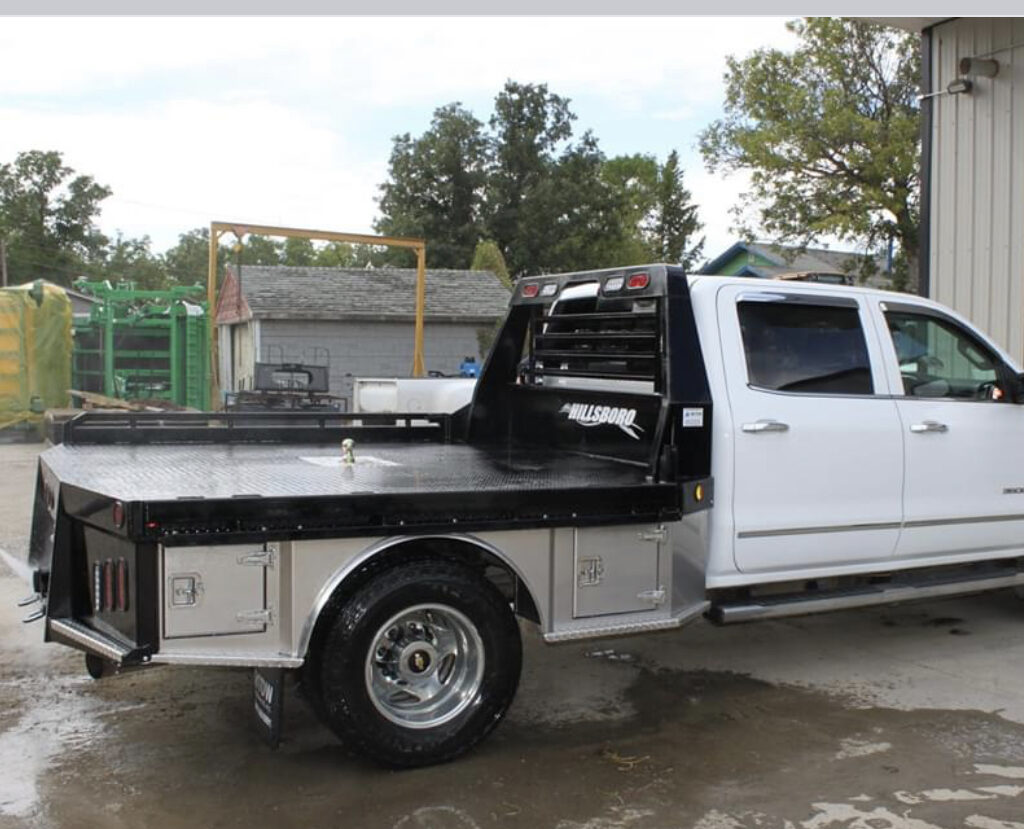

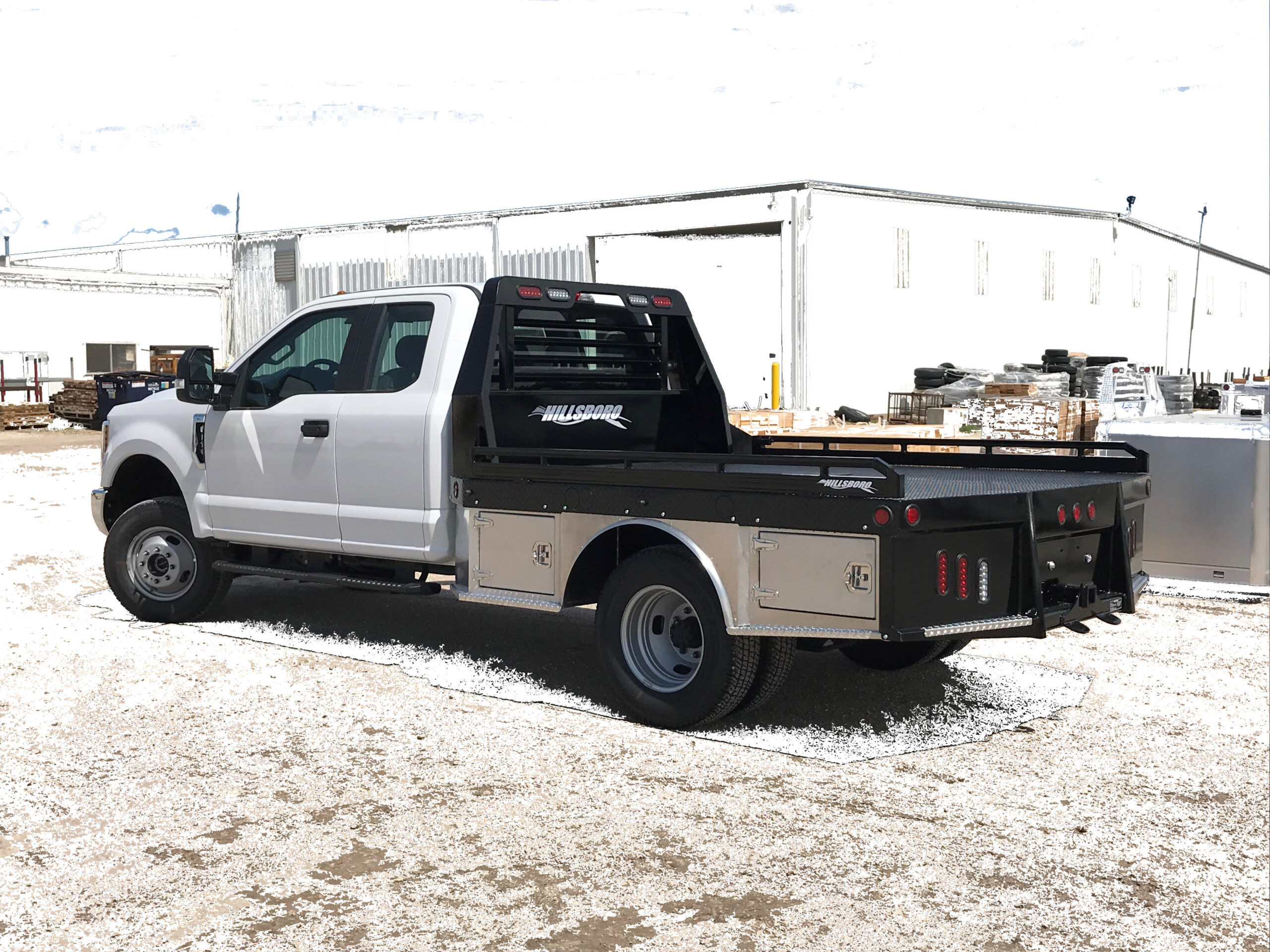

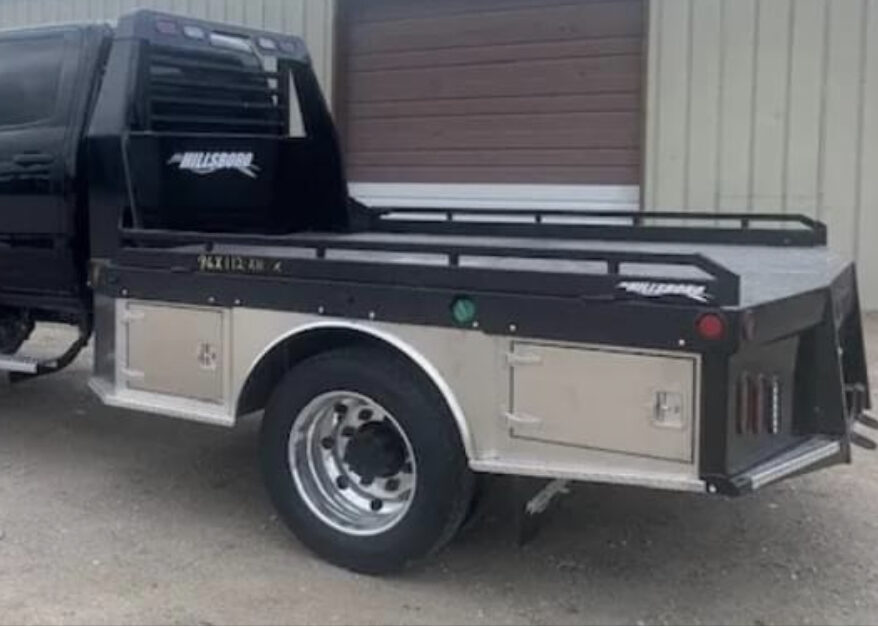

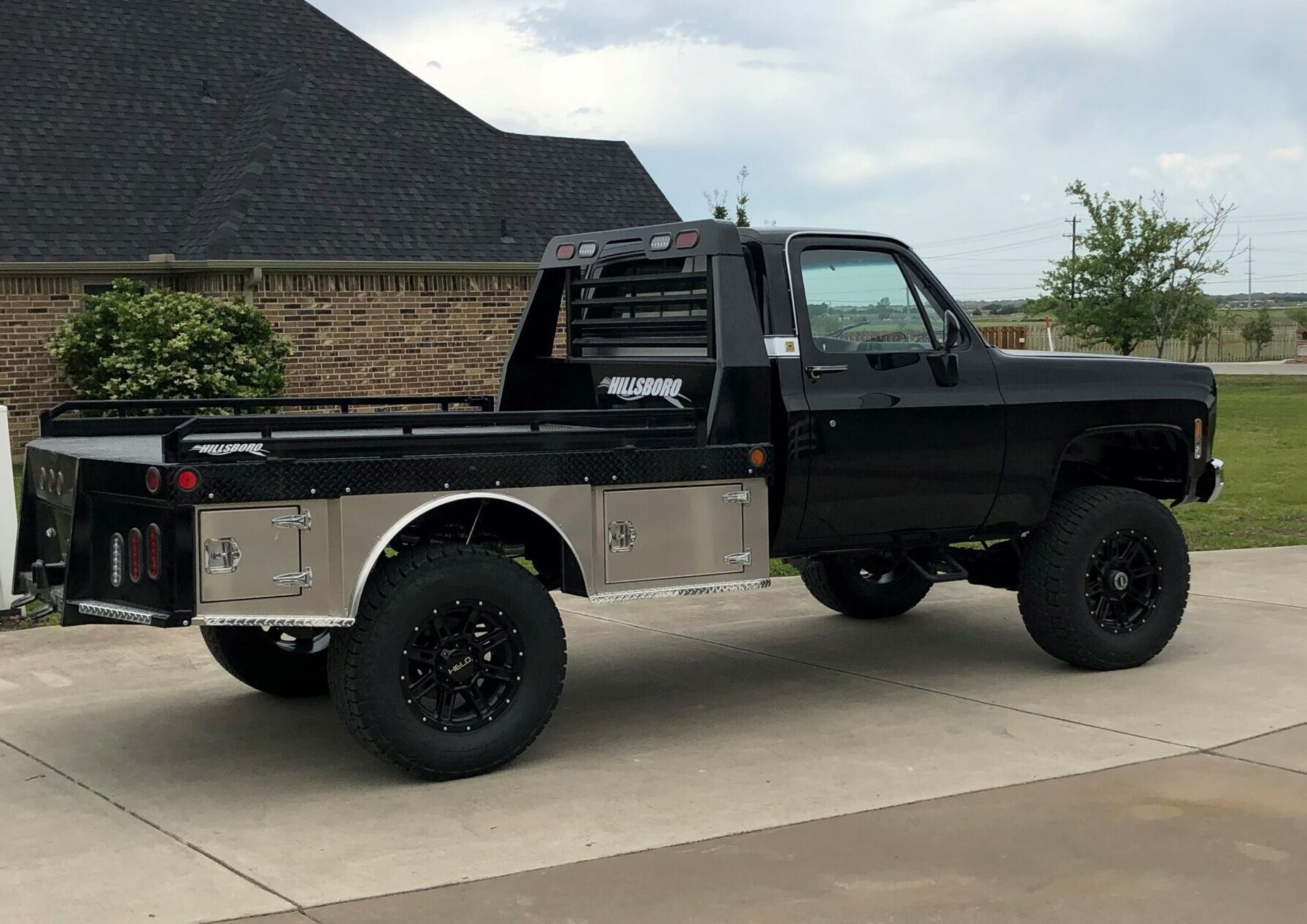

About the STA 1000 Hybrid Truck Bed
This STA 1000 Hybrid Truck Bed from Hillsboro Industries combines some of the best features of aluminum and steel beds into one sleek product. This aluminum-skirted bed provides corrosion-resistance in the areas most often impacted by rust and rot on a typical skirted bed, with toolboxes to provide convenient storage and protection for your equipment. With 5” structural channel long sills and 2 ½” crossmembers, you know you are driving a structure that is made for durability. Tow loads safely across town, the state or the country — and look good doing it.
Specifications
| Single – Short Bed | Ford | RAM | GM |
|---|---|---|---|
| Dimensions | 80″ W x 86″ L | 80″ W x 86″ L | 80″ W x 86″ L |
| Weight | 1050 lbs | 1050 lbs | 1050 lbs |
| Cab-Axle | 40″ | 37″ | 42″ |
| Frame Width | 38″ | 42″ | 42″ |
| Headache Rack | 40″ | 36.5″ | 36.5″ |
| Part # | 78010 | 78011 | 78012 |
…
| Single – Long Bed | Ford | RAM | GM |
|---|---|---|---|
| Dimensions | 80″ W x 102″ L | 80″ W x 102″ L | 80″ W x 102″ L |
| Weight | 1190 lbs | 1190 lbs | 1190 lbs |
| Cab-Axle | 56″ | 58″ | 56″ |
| Frame Width | 38″ | 42″ | 42″ |
| Headache Rack | 40″ | 36.5″ | 36.5″ |
| Part # | 78013 | 78035 | 78014 |
…
| Single – Cab Chassis | Ford / RAM | GM |
|---|---|---|
| Dimensions | 80″ W x 112″ L | 80″ W x 112″ L |
| Weight | 1250 lbs | 1240 lbs |
| Cab-Axle | 60″ | 60″ |
| Frame Width | 34″ | 34″ |
| Headache Rack | 40″ | 36.5″ |
| Part # | 78015 | 78016 |
…
| Dual – Long Bed | Ford | RAM | GM |
|---|---|---|---|
| Dimensions | 96″ W x 102″ L | 96″ W x 102″ L | 96″ W x 102″ L |
| Weight | 1260 lbs | 1260 lbs | 1260 lbs |
| Cab-Axle | 56″ | 58″ | 56″ |
| Frame Width | 38″ | 42″ | 42″ |
| Headache Rack | 40″ | 36.5″ | 36.5″ |
| Part # | 78030 | 78036 | 78031 |
…
| Dual – Cab Chassis | Ford / RAM | GM |
|---|---|---|
| Dimensions | 96″ W x 112″ L | 96″ W x 136″ L |
| Weight | 1330 lbs | 1510 lbs |
| Cab-Axle | 60″ | 84″ |
| Frame Width | 34″ | 34″ |
| Headache Rack | 40″ | 40″ |
| Part # | 78032 | 78034 |
Features
LED Lights
Signal to your neighbors on the road using six stop, turn & tail lights, four backup lights and LED clearance and side-marker lights.
Epoxy Primer and Black Polyurethane Paint
Improve your bed’s service life while providing enhanced aesthetics.
1/8″ steel treadplate floor
Reduce the risk of skidding or slipping in your bed.
Headache Rack with 1 ¼” Square Tube Louvers
Transport large items while keeping yourself, your passengers and other drivers safe.
30K Gooseneck Ball Plate with Flush Mount Cover
Pull a trailer with no difficulties using our gooseneck trailer hitch.
5” Structural Channel Long Sills and 2 ½” Crossmembers
Increases the strength and capacity of your bed.
Board holders across front and back
Take your storage to a new level.
Sealed wiring harness
Avoid the dangers of wire damage using our automotive-grade wiring harness with plug-in connections.
Inboard stake pockets and 6” fold-down sides w/ multiple tie locations
Secure loads of all shapes and sizes quickly and easily.
Greasable hinges, slam latch and rubber bump stop
Prevent avoidable accidents involving you, your cargo or other drivers.
Tapered rear with step
Receive better clearance for towing and easier access to your bed.
Tapered front on 96” wide dual-wheel beds
Lead with a more aerodynamic and attractive front.
Filler neck mounting bracket with fuel-fill knockout
Make your installation quick and easy.
25K rated 2 ½” receiver tube
Tow heavy loads with safety and ease.
Toolboxes with EPDM closed-cell foam seal
Weather-proof your truck, right down to your toolboxes.
.125 aluminum corrosion zone
Low-maintenance 125 aluminum skirt and toolboxes eliminate the risk of corrosion and hinges freezing up.
Factory Options
Find Hillsboro across North America
Products shown may include optional features. Specifications, features and warranties subject to change without notice.
